Flow Cytometric Analysis of Virus-induced Apoptosis and Virus Replication


To improve the yields of cell culture-based influenza vaccine production it is important to understand infection dynamics on a cellular level. As it is a powerful tool to investigate cell populations on a single-cell level, we are using flow cytometry as method of choice.

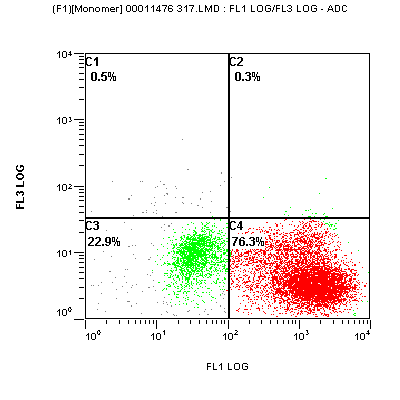

Because programmed cell death (apoptosis) is known to influence production yields it is a focus of our research. Using the apoptosis-detecting TUNEL assay and virus protein specific antibodies we are able to monitor four different cell populations during the infection in the bioreactor. Namely, we are able to differentiate between uninfected cells, apoptotic cells, infected cells, and cells that are infected and apoptotic at the same time [1,2]. Thus, flow cytometry allows us to characterize infection and apoptosis dynamics of different influenza vaccine strains, offering a profound insight into progress of infection at a cellular level.

Aim of the project

A profound understanding of cellular processes taking place during an influenza infection is the basis for optimizing the vaccine production process. We seek to use the knowledge about apoptosis induction and virus spread for optimizing virus yields and thereby enhancing the efficiency of the process. Furthermore, these data are used to improve mathematical infection models, which allow a theoretical analysis of the process.


[1] Schulze-Horsel, J., Genzel, Y., Reichl, U. (2008) Flow cytometric monitoring of influenza A virus infection in MDCK cells during vaccine production. BMC Biotechnology 8:45.
[2] Schulze-Horsel, J., Schulze, M., Agalaridis, G., Genzel, Y., Reichl, U. (2009) Infection dynamics and virus-induced apoptosis in cell culture-based influenza vaccine production - Flow cytometry and mathematical modeling. Vaccine 27(20), 2712-2722.
[3] Schulze-Horsel, J. (2011) Zellphysiologische Charakterisierung von Zellkulturen in der Influenza-Impfstoffproduktion, PhD Thesis (German).
