Reaction network analysis and kinetics

Catalyst preparation, kinetic characterization and modulation of deactivation effects

The demand for propene has been growing over the past years as propene is used to produce a variety of chemicals (e.g. polypropylene). Propene is obtained mainly from naphtha steam crackers as a co-product to ethene, and as a co-product from gasoline production from fluid catalytic cracking (FCC) units. One of the potential alternatives to deal with the increasing gap between demand and supply is the direct conversion of ethene to propene (ETP-reaction) by using a catalyst constituted of both MCM-41 and AlMCM-41 doped with nickel. This catalytic system is efficient but faces a severe drawback with fast deactivation with time on stream. Therefore, an alternative is investigated in form of a sequential reactor setup.

Ethene to propene (ETP): Catalyst preparation and process concepts

Propene is a central building block for the chemical industry. One promising on-demand alternative to increase the availability of propene is the direct conversion of ethene.

3 C₂H₄ --> 2 C₃H₆(ETP- reaction)

This reaction proceeds via a reaction network, consisting of three consecutive reactions, as show in Figure 1 and given in detail below.

Reaction network

Dimerization of ethene (Ni/AlMCM-41 and acid sites) (Cat. 1)
Isomerization of 1-butene (Acid sites) (Cat. 1)
Metathesis of 2-butene and ethene (NiRe-, Re-, Mo-, W- based catalyst) (Cat. 2)

Figure 1: ETP reaction mechanism.[Felischak, M., Wolff, T., Alvarado Perea, L., Seidel-Morgenstern, A., & Hamel, C. (2019). Influence of process parameters on single bed Ni/(Al)MCM-41 for the production of propene from ethene feedstock. Chemical Engineering Science, 210: 115246.] — **Figure 1:** ETP reaction mechanism. [Felischak, M., Wolff, T., Alvarado Perea, L., Seidel-Morgenstern, A., & Hamel, C. (2019). Influence of process parameters on single bed Ni/(Al)MCM-41 for the production of propene from ethene feedstock. Chemical Engineering Science, 210: 115246.]

**Figure 1:** ETP reaction mechanism.
[Felischak, M., Wolff, T., Alvarado Perea, L., Seidel-Morgenstern, A., & Hamel, C. (2019). Influence of process parameters on single bed Ni/(Al)MCM-41 for the production of propene from ethene feedstock. Chemical Engineering Science, 210: 115246.]

The Ni/AlMCM-41 material is an interesting catalyst, capable of performing all three reaction steps at once, which has been developed previously. In the process of intensification of the propene production, a reasonable attempt is the decoupling of the ongoing reaction network.

Project goal

Realization of a two-reactor concept (see Figure 2) with the separation of the metathesis step from the dimerization and isomerization. The work within this project includes also the in-house preparation of the catalysts in a reproducible manner for the two-reactor concept, their characterization with modern techniques, the investigation of catalysts deactivation and the determination of reaction kinetics.

Figure 2: Sequential processes (two-reactor concept) using two catalysts segregated. — **Figure 2:** Sequential processes (two-reactor concept) using two catalysts segregated.

**Figure 2:** Sequential processes (two-reactor concept) using two catalysts segregated.

Characterization equipment

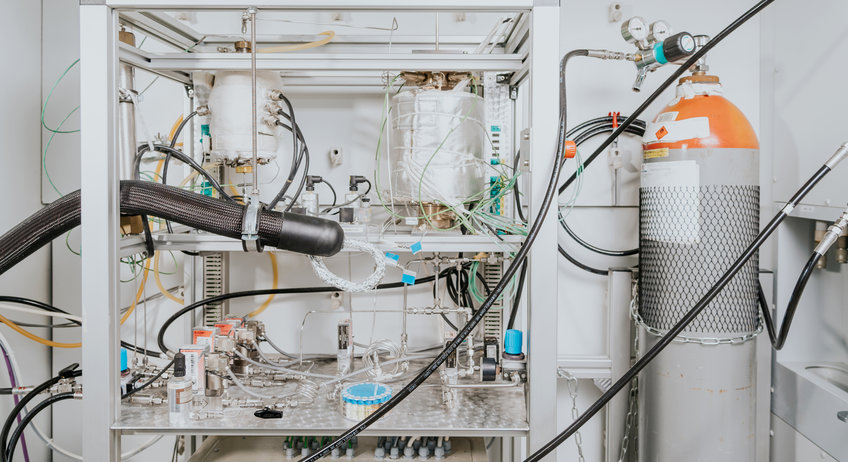

Fully automated laboratory and miniplant multi-reactor equipment for catalytic testing and kinetic measurements.
Powder XRD - X`Pert PRO apparatus (PANalytical) with CuKα.
Nova 2000e (Quantachrome) surface area and pore size analyzer.
Chem Star TPx⁺ (Quantachrome/3P Instruments) and TPD-R-O (Porotec) equipments (TPR, TPO, pulse chemisorption, TPD).
FT-Raman Spectrometer - MultiRam (BRUKER Optics) for powder sample.
Support by the Faculty of Natural Sciences, Institute of Experimental Physics and the Chemical Institute of the Otto-von-Guericke-University Magdeburg with TEM, EDX, FTIR and MAS-NMR.

Figure 3: Conversion Xi of the reactants (ethene and trans-butene) and selectivity of the analyzable production Sj (propene, 1-butene, cis-butene and pentene) on the right axis for varying reaction temperature for (a) Re/AlMCM‑41(60), (b) NiRe/mix (1:1) and (c) W/SiO2. — **Figure 3:** Conversion Xi of the reactants (ethene and trans-butene) and selectivity of the analyzable production Sj (propene, 1-butene, cis-butene and pentene) on the right axis for varying reaction temperature for (a) Re/AlMCM‑41(60), (b) NiRe/mix (1:1) and (c) W/SiO₂.

**Figure 3:** Conversion Xi of the reactants (ethene and trans-butene) and selectivity of the analyzable production Sj (propene, 1-butene, cis-butene and pentene) on the right axis for varying reaction temperature for (a) Re/AlMCM‑41(60), (b) NiRe/mix (1:1) and (c) W/SiO₂.

Figure 4: Characterization by (a) XRD and (b) NH3-TPD techniques. — **Figure 4:** Characterization by (a) XRD and (b) NH₃-TPD techniques.

**Figure 4:** Characterization by (a) XRD and (b) NH₃-TPD techniques.
